A-4K Skyhawk

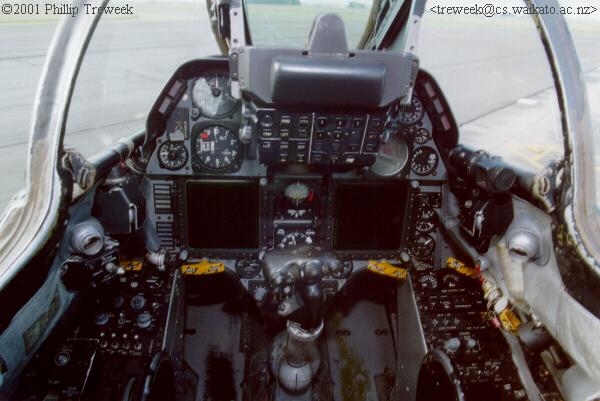

Taken at Ohakea, December 13, 2001. "Kahu' cockpit looking forward. The main panel is dominated by the two Multi-Function Displays (MFD) which are used for displaying radar, maverick video, and other information. The main flight instrumentation is displayed on the HUD, with the TACAN, VOR/ILS, and ARC-182 integrated into the Nav kit. By using the UFC keypad below the HUD, the pilot can display any necessary information without having to look into the cockpit. Backup analog flight instruments fill the rest of the panel. The usual array of warning lights are to the left and on the coaming. The port console is described here . The starboard console is described here
