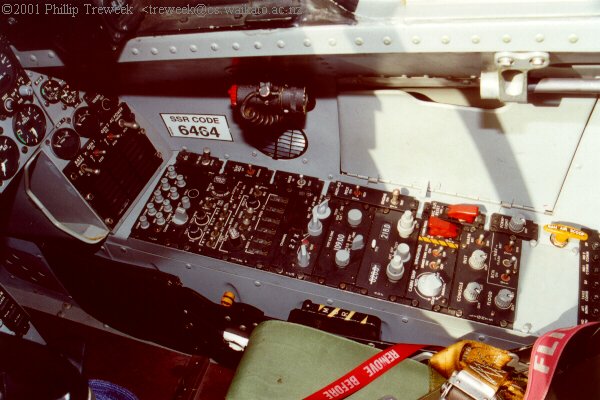

Taken at Whenuapai, March 17, 2001. Forward cockpit - starboard console. At the front on the lateral panel (below the instrument panel proper) are the hydraulic gauges, generator loadmeters and switches, and a series of caution lights. On the console proper from front to back are the Comms audio controls, IFF, TACAN, VOR/ILS, ADF, air conditioning (cabin heat and pressure), and light control panels. Along the outside edge of the panels are switches for the ELT, seat adjustment, marker beacon, anti-icing, secondary bus reset (red cover), and formation lights. To the right (beyond the yellow handle of the ram air scoop) is the No.2 circuit breaker panel.
